» Arctic Cat » 550 S LTD
Model Quick Search

$10,249.00
$8,899.00
$1,350.00

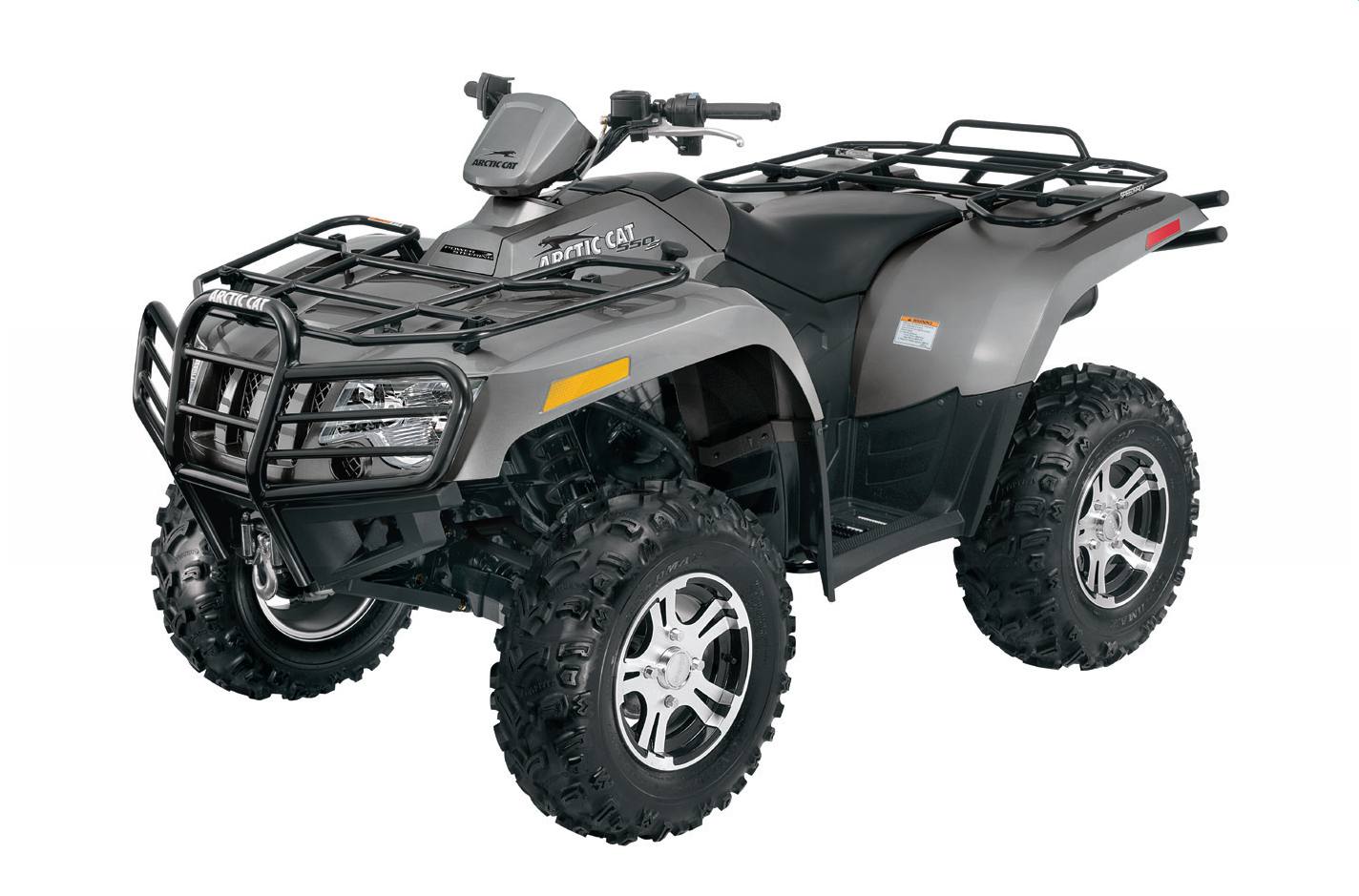

2010 Arctic Cat 550 S LTD

--- 550 PS 2010

Now until July 29, 2011
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

When the trail calls, answer it with a machine that delivers on every level. The 550 S LTD provides the power of a 4-stroke, liquid-cooled H1 EFI 545cc engine in concert with a Duramatic® automatic transmission, offering maximum horsepower when you need it most. Its new electronic power steering system is skilled at helping you maneuver through even the hairiest of trails. And the sporty body styling of this ATV sets you apart from other riders out there. This limited model also includes 12" aluminum rims, front and rear brushguard bumpers, a heavy-duty winch and a sleek, Tungsten Metallic paint job that truly stands out in the great outdoors.

  • Power Steering - This technology means business, even at idle. An electronic power steering (EPS) system designed specifically for Arctic Cat, it reduces torque necessary to steer your ATV while changing directions or navigating rough terrain. Its electronic unit provides assistance to the steering column trough a sealed, brushless electric motor, which measures steering input force verses tire resistance and vehicle speed. Four different inputs (MPH, RPH, handlebars and wheels) and 36 foot-pounds of torque - 3x the competition.
  • Ride-In Suspension - Fully independent, race-inspired suspension features a lower suspension profile and a lower seat design, resulting in a lower center of gravity yet maintaining 11" of ground clearance. That means more confidence hammering through tight corners on the trail, as well as clearing big, nasty obstacles off the trail.
  • 550 H1 EFI Engine - This 545cc, liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for its hemispherical-shaped heads, delivering more efficient combustion resulting in better performance. Electronic fuel injection ensures easy starts and consistent performance in various climates or altitudes. This 4-stroke is efficient, powerful and ready to go.
  • Deluxe Digital/Analog Gauge - Within a glance, you'll be able to catch a glimpse of up to 14 critical information indicators. Keep a close check on such indicators as your speedometer, clock/hour meter, fuel level, mode button, odometer/tripmeter, gear position, differential lock, high beam, battery condition, temperature and oil pressure.
  • Electric 2WD/4WD and Front Differential Lock - When the going g ets tough, shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • 12" Machined Aluminum Rims - Our heavy-duty polished aluminum rims with painted black inlays feature an optimized scrub radius minimizing riding steering effort.
  • Tungsten Metallic Paint - No-nonsense. It defines your riding style and lets other riders know it from the get-go. Now it's more visible than ever with a Tungsten Metallic paint job. Light, gunmetal gray to show the world you mean business on any trail.
Specifications
  • Displacement: 545 cc
  • Engine Type: SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 92 x 82 mm
  • Cooling System: Liquid with fan
  • Fuel Capaciy: 5.7 gal / 21.6 L
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital/analog
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in / 25.4 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in / 25.4 cm
  • Front Tires (Pressure): 25 x 8-12 (5)
  • Rear Tires (Pressure): 25 x 10-12 (5)
  • Color: Metallic
  • Overall Length: 84.8 in / 215.4 cm
  • Overall Width: 47.5 in / 120.6 cm
  • Overall Height: 48 in / 121.9 cm
  • Wheelbase: 50 in / 127 cm
  • Ground Clearance: 11 in / 27.9 cm
  • Dry Weight: 692 lbs / 313.9 kg
  • Front Rack Capacity: 100 lbs / 45.4 kg
  • Rear Rack Capacity: 200 lbs / 90.8 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg
  • Front & Rear Bumpers: Standard
  • Bumpers: Standard

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Engine Cooling Liquid with fan
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Dimensions/Capacities
Dry Weight 692 lbs. (313.9 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 84.8 in. (215.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 48 in. (121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Metallic

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model 550 S LTD
Style Utility
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Frame
Dimensions/Capacities
Dry Weight 692 lbs. (313.9 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 84.8 in. (215.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 48 in. (121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Metallic
Warranty
